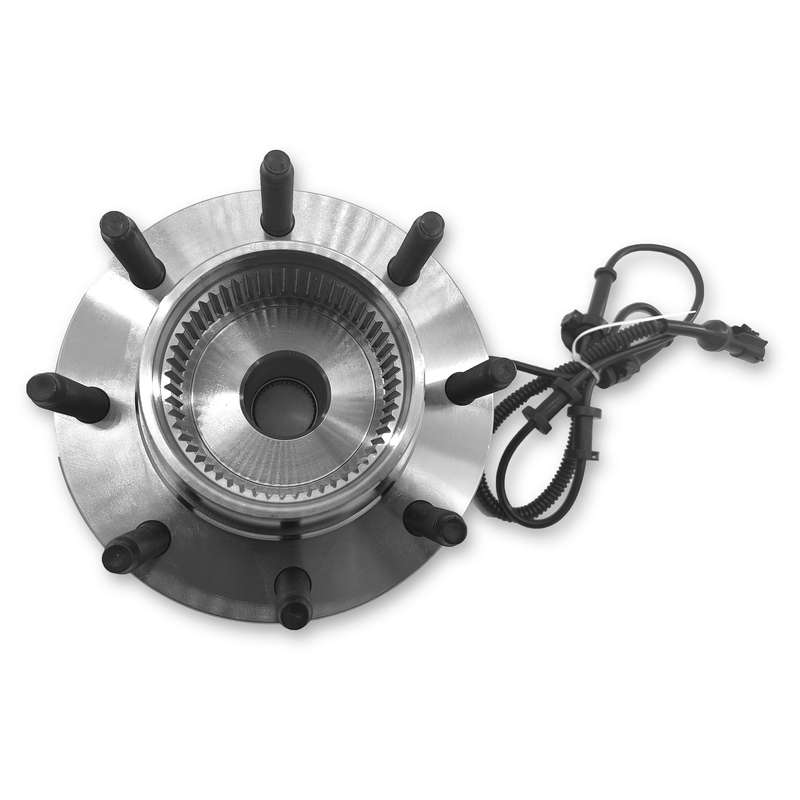

Specification
Spline Quantity: 55
Flange Offset: 54.5mm
Flange Diameter: 203mm
Flange Bolt Quantity: 4
Wheel Pilot Diameter: 125mm
Brake Pilot Diameter: 129mm

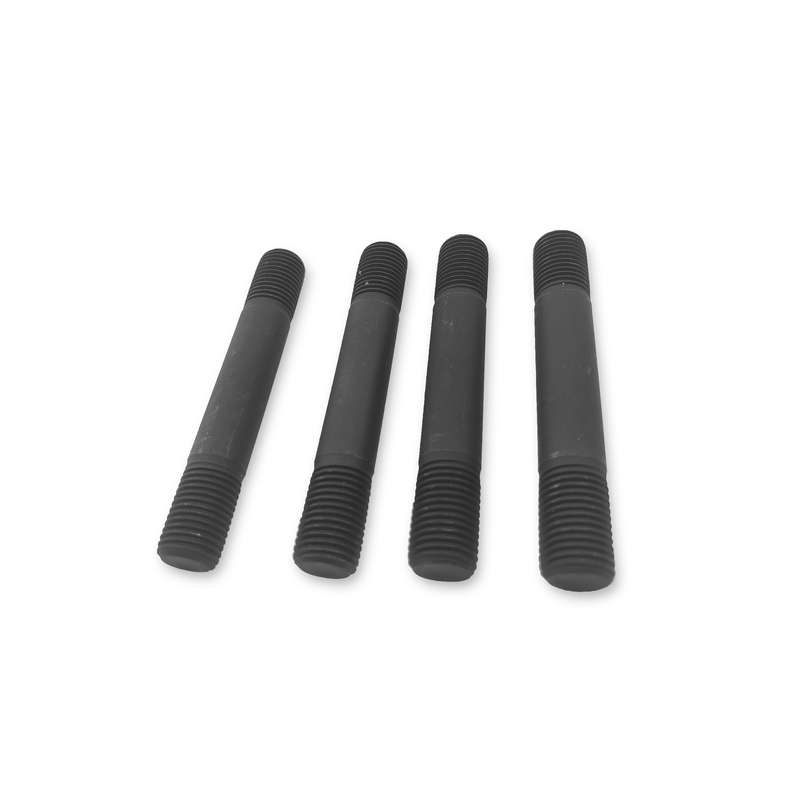

Wheel Stud Quantity, PCD: 8 M14 x1.5 @ 170mm
Hub Pilot Diameter: 113.9mm
ABS: Yes
OEM Part Number
515056
Fitment
Fit For Ford F250 RM RN 7.3L 445 V8 16V OHV 4WD 11/2001 - 09/2007 ABS, SRW - Fine Thread
Fit For Ford F250 RM RN 5.4l 5.4 V8 16V SOHC RWD 11/2001 - 09/2007
Fit For Ford F350 RM RN 7.3L 445 V8 16V OHV RWD 07/2001 - 07/2007 4 Wheel ABS 2003-2004 - Single Rear Wheel
Fit For Ford F350 Super Duty 7.3L 445 V8 16V OHV RWD 1999 - 2003 4 Wheel ABS 2003-2004 - Single Rear Wheel
Package

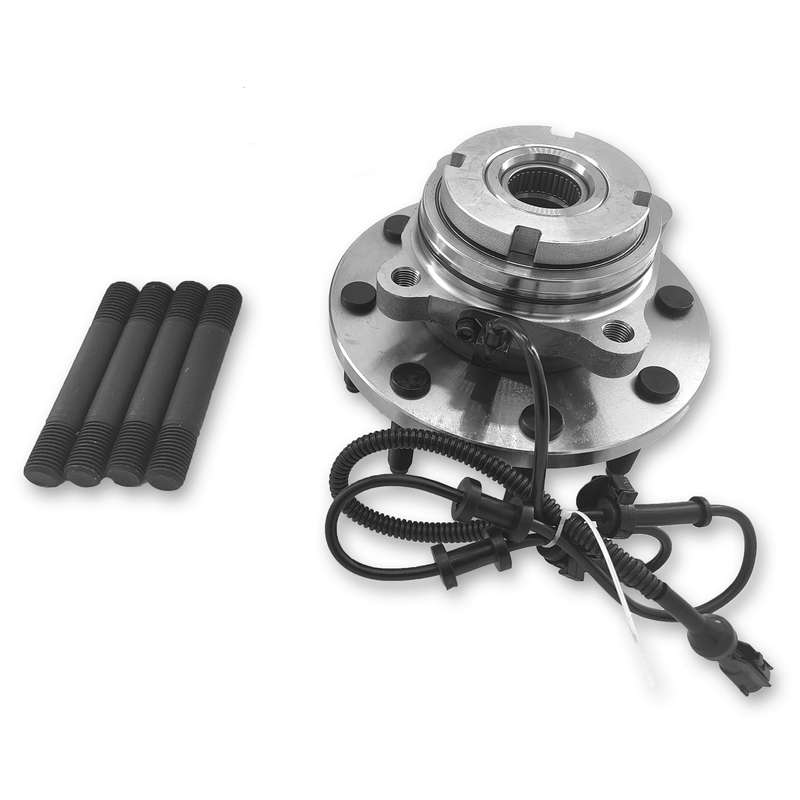

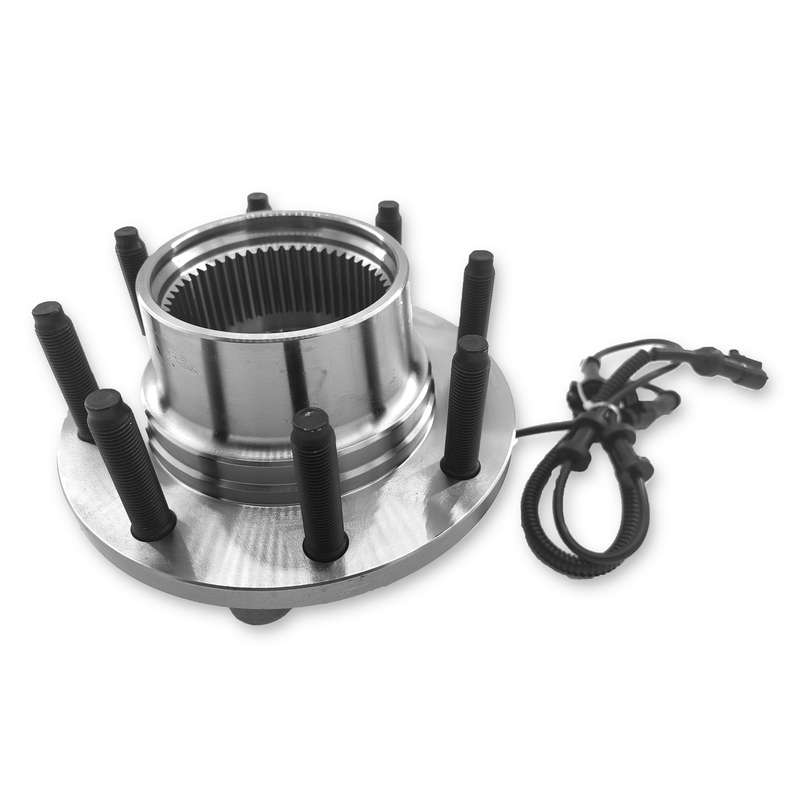

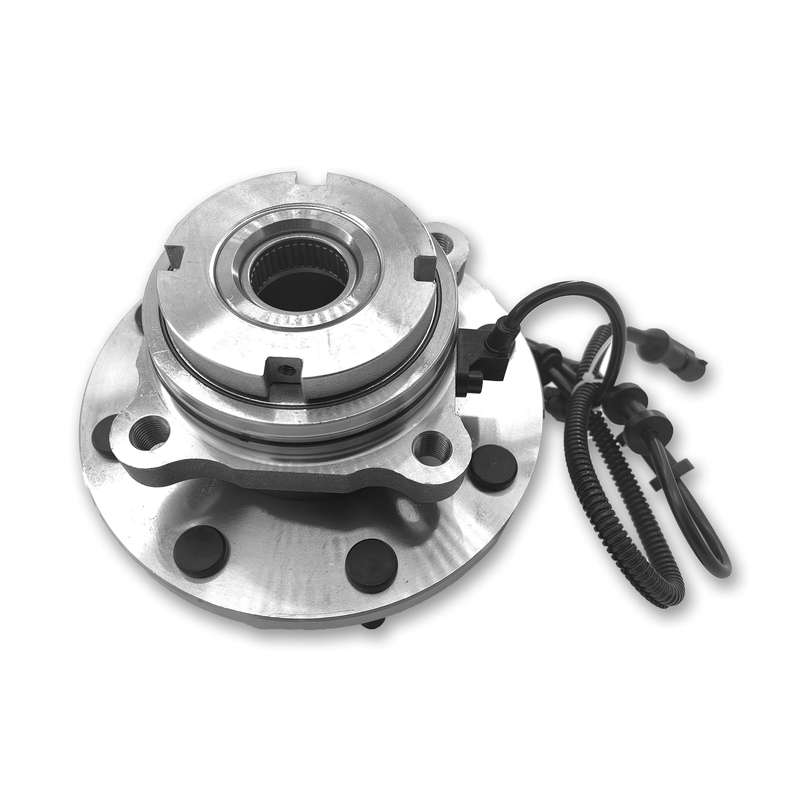

1 x Front Wheel Bearing Hub
| SKU | WH-FD016-1PCS |
| Brand | Aftermarket AUTOPARTS |
| Shipping Weight | 11.4000kg |
| Shipping Width | 0.225m |
| Shipping Height | 0.165m |
| Shipping Length | 0.235m |
| Shipping Cubic | 0.008724000m3 |
