Specification

Volts：12
Amps：85
Adjustment Hole (mm)：M8x1.25
Pivot Hole (mm)：10
Adjustment to Pivot (mm)：162
Pivot Length (mm)：58
Inside Feet To Feet (mm)：/
Pulley (mm)：65
No Of Grooves：4PV
Plug：RP208

OEM Part Number

31400-52D00 31400-52D10 31400-77E10 31400-77E11 31400-77E12 31400-85D00

3140052D00 3140052D10 3140077E10 3140077E11 3140077E12 3140085D00

101211-9180 102211-1430 102211-2400 102211-2430 104210-8140

1012119180 1022111430 1022112400 1022112430 1042108140

0986045771 0986045781

LRA02058 CAL47101 DRA1014 RAA12125

DAN1006

JA1356IR

HX303

111950 13795

Fitment

For Suzuki Alto EF SH410 FB110S engine G10B 1.0L Petrol 1996-1999

For Suzuki Baleno 1.6L 1995-2005

For Suzuki Baleno 1.6L 1996-2002

For Suzuki Carry GA413 engine G13BB 1.3L Petrol 1999-2005

For Suzuki Super Carry SK410 engine FDA32 1.3L Petrol 1999-2004

For Suzuki Jimny SN413 engine G13BB 1.3L Petrol 1998-2000

For Suzuki Jimny SN413 engine M13A 1.3L Petrol 2000-2005

For Suzuki Jimny SN413 engine M13AA 1.3L Petrol 2005-2019

For Suzuki Vitara SV420 engine J20A 2.0L Petrol 1997-2000

For Suzuki Vitara SV620 engine H20A 2.0L Petrol 1995-1998

For Suzuki Grand Vitara JA627 engine H27A 2.7L Petrol 2001-2006

For Suzuki Grand Vitara engine M16A 1.6L Petrol 2005-2008

For Suzuki Grand Vitara SQ416 engine G16B 1.6L Petrol 1998-2005

For Suzuki Grand Vitara SQ420 engine J20A 2.0L Petrol 1998-2005

For Suzuki Grand Vitara SQ625 engine J25A 2.5L Petrol 1998-2005

For Suzuki Grand Vitara JB627 engine H27A 2.7L Petrol 2005-2008

For Suzuki Grand Vitara JT engine H27A 2.7L Petrol 2005-2008

Package

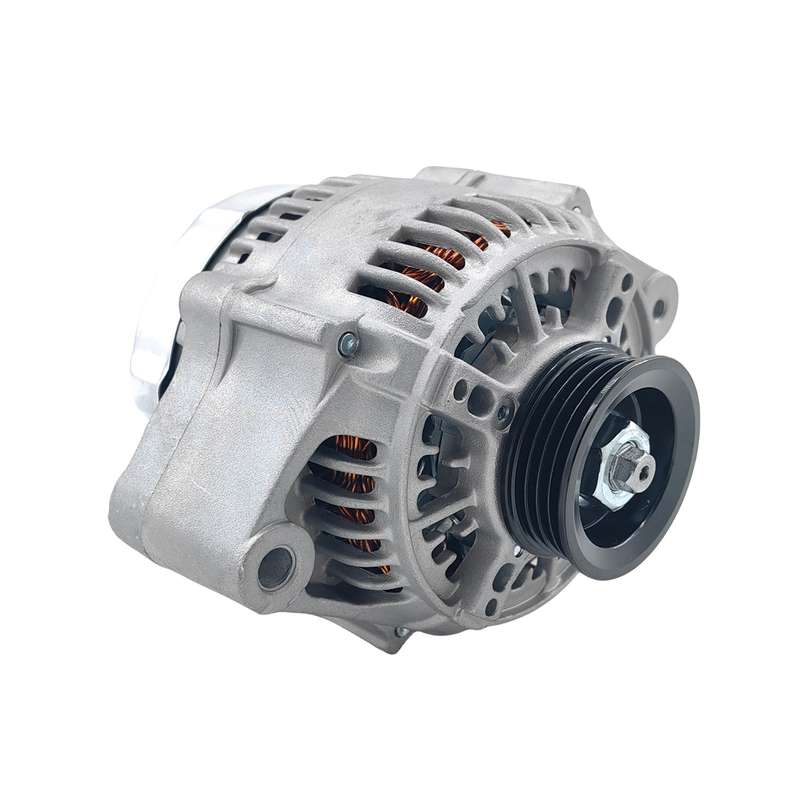

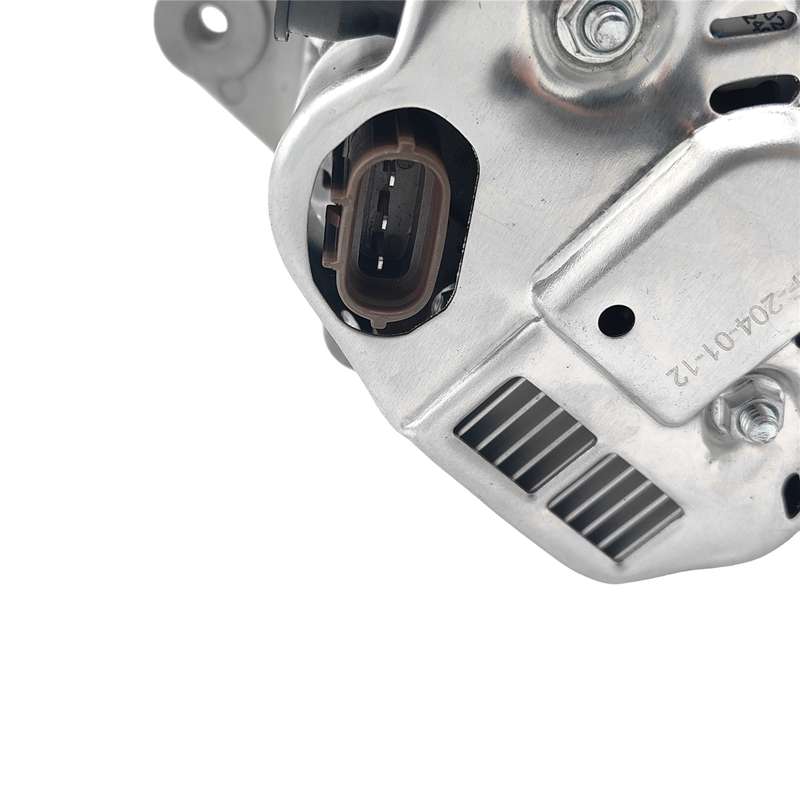

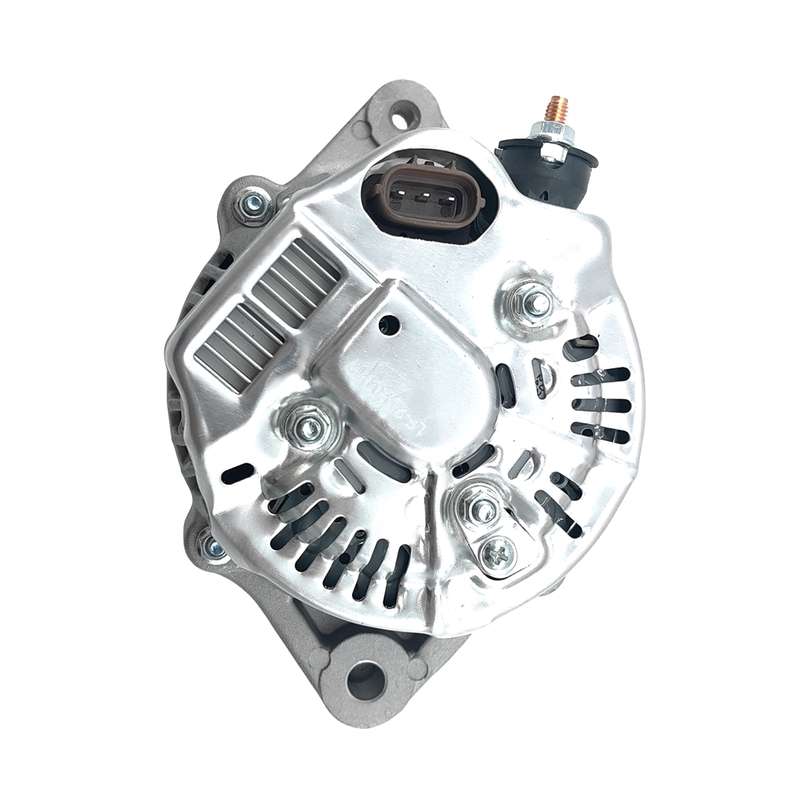

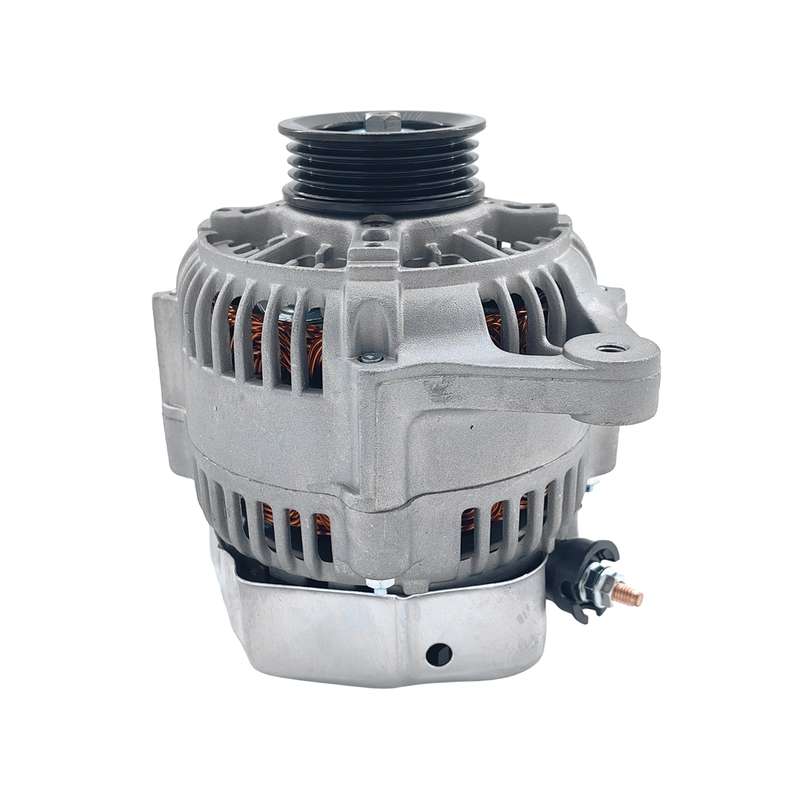

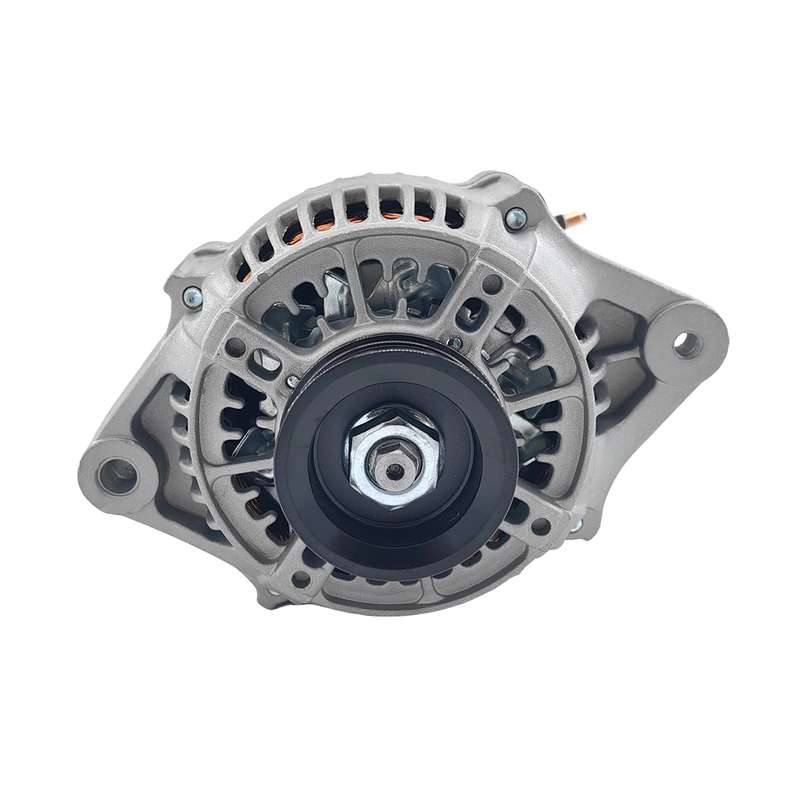

1 x Alternator
