Feature

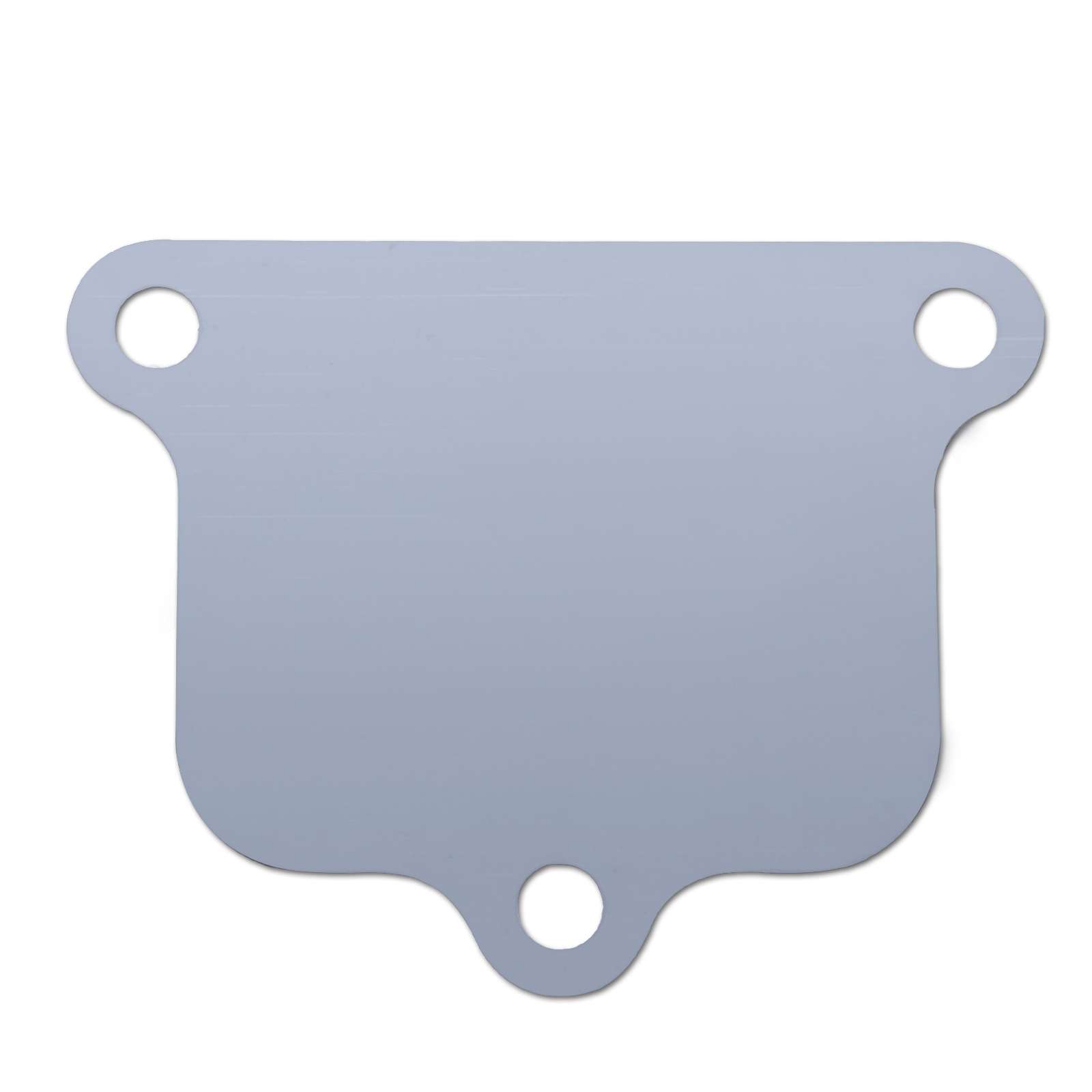

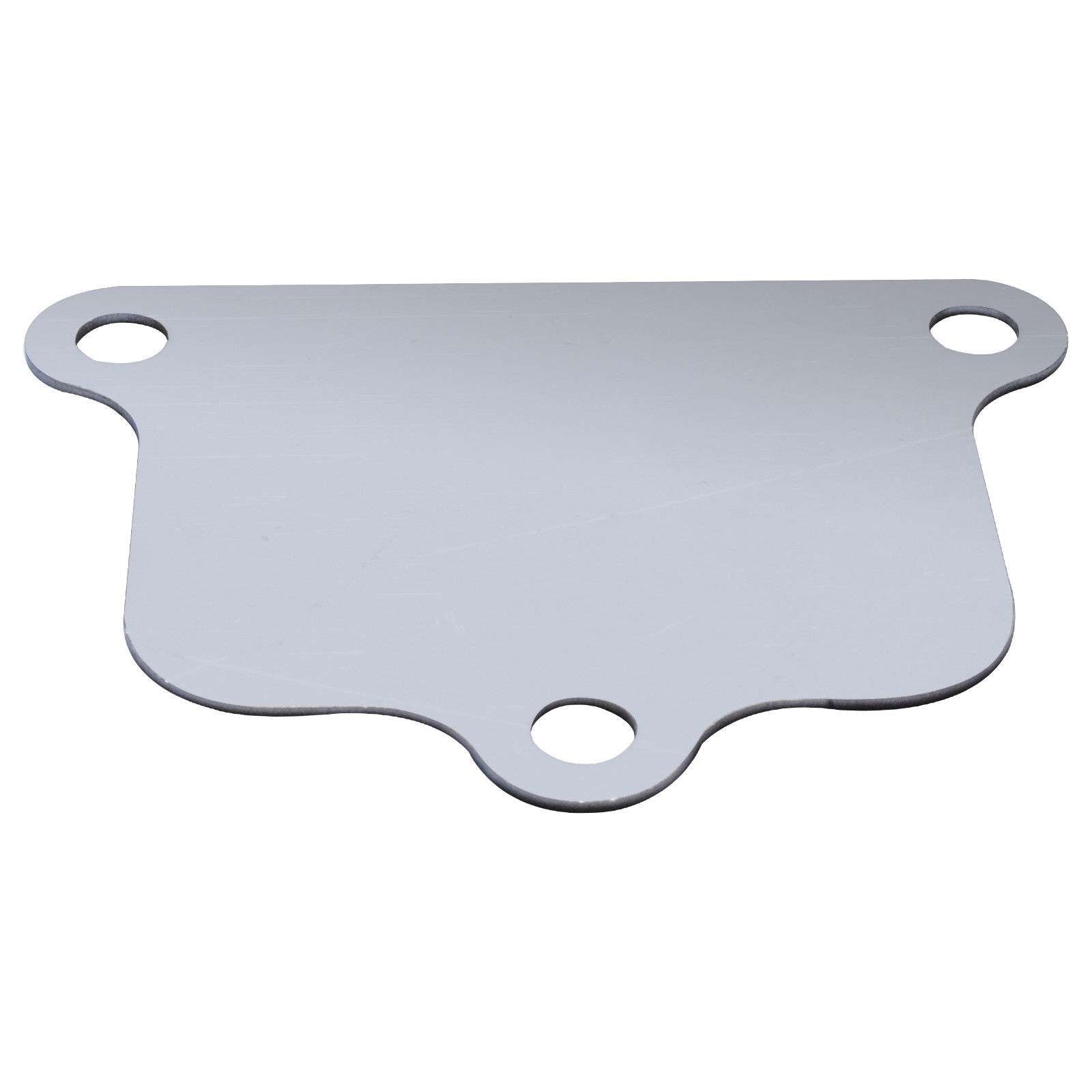

- Brand new high quality EGR blanking plate
- Material: 304 stainless steel
- It fits on the exhaust manifold; the side of the gasket on the EGR cooler flange
- Prevents loss of coolant out the exhaust pipe in event of EGR cooler failure
- Direct replacement; High performance part
Fitment
- Ford PX 1 & PX 2 Ranger
- Mazda BT-50
- From late 2011 to 2015
- 2.2L 4cyl & 3.2L 5cyl engines
Package
1 x Plate
Installation Guide
-
See the images (above) for the location of the EGR cooler and where to insert the plate.
-
Remove the 3 bolts connecting the EGR cooler to the exhaust manifold
-
Loosen the mounting bolt/s of the EGR cooler
-
Apply silicon sealant around the edges of the EGR plate
-
Slide the EGR plate in onto the cooler side of metal gasket
-
Replace the 3 bolts and tighten - Factory recommends torque to be 23 nm
-
Tighten the mounting bolt - 23 nm
| SKU | BP-FD016 |
| Brand | Aftermarket AUTOPARTS |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.050m |
| Shipping Length | 0.130m |
| Shipping Cubic | 0.000100000m3 |
| Unit Of Measure | ea |
