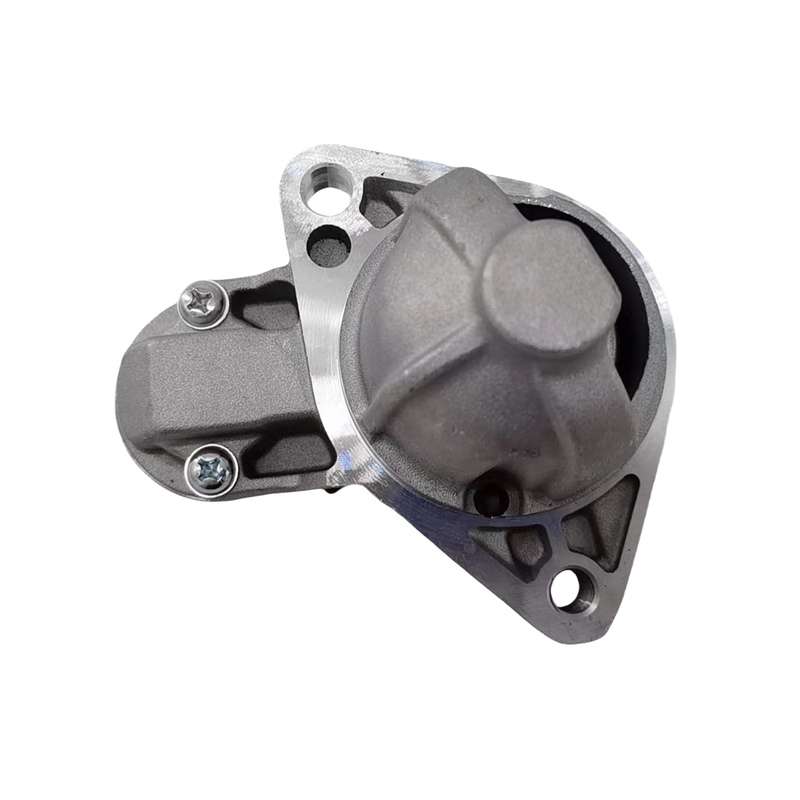

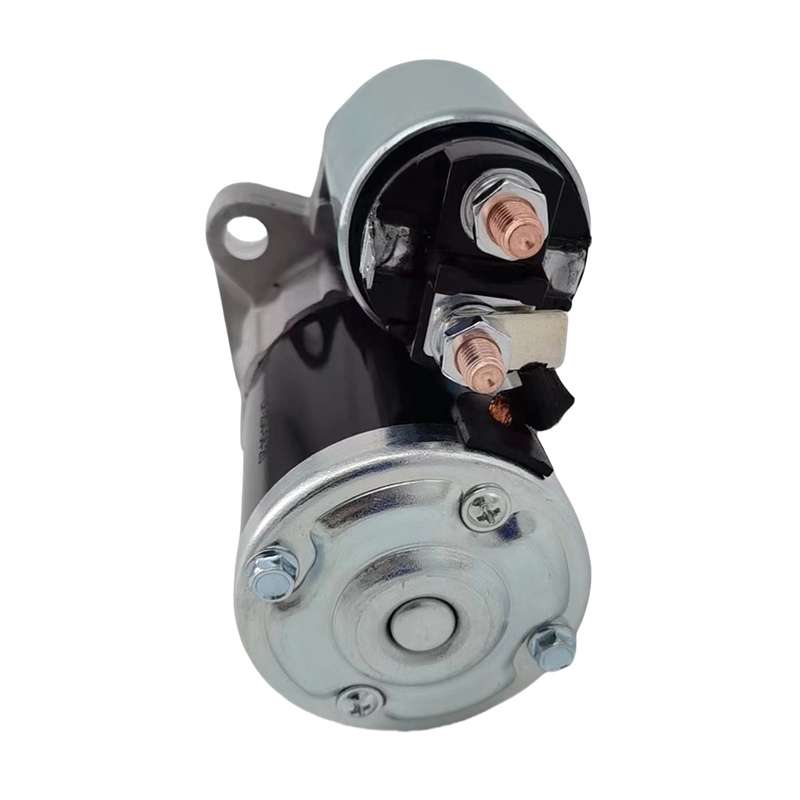

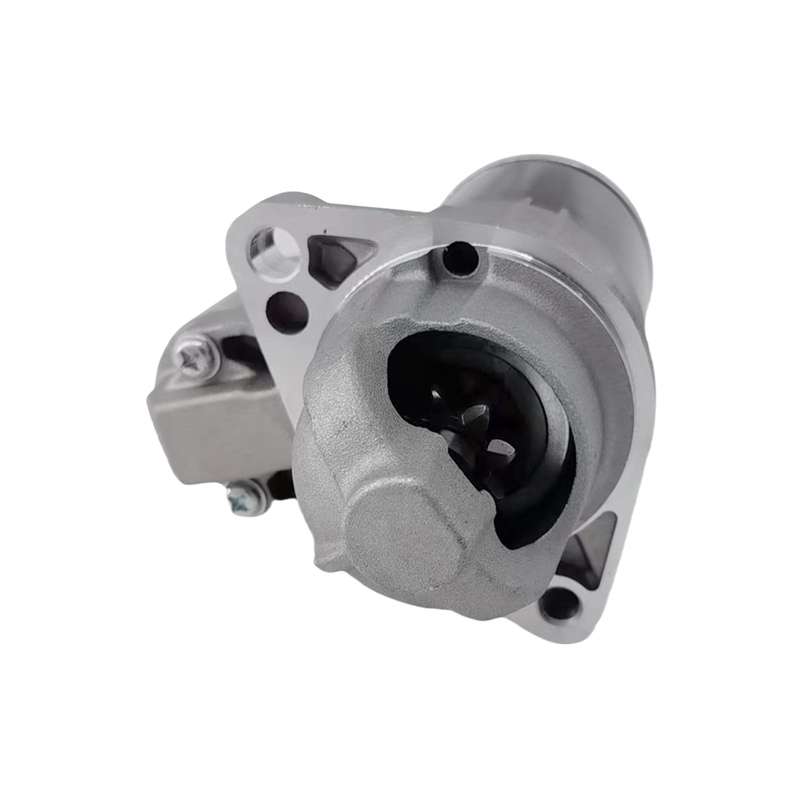

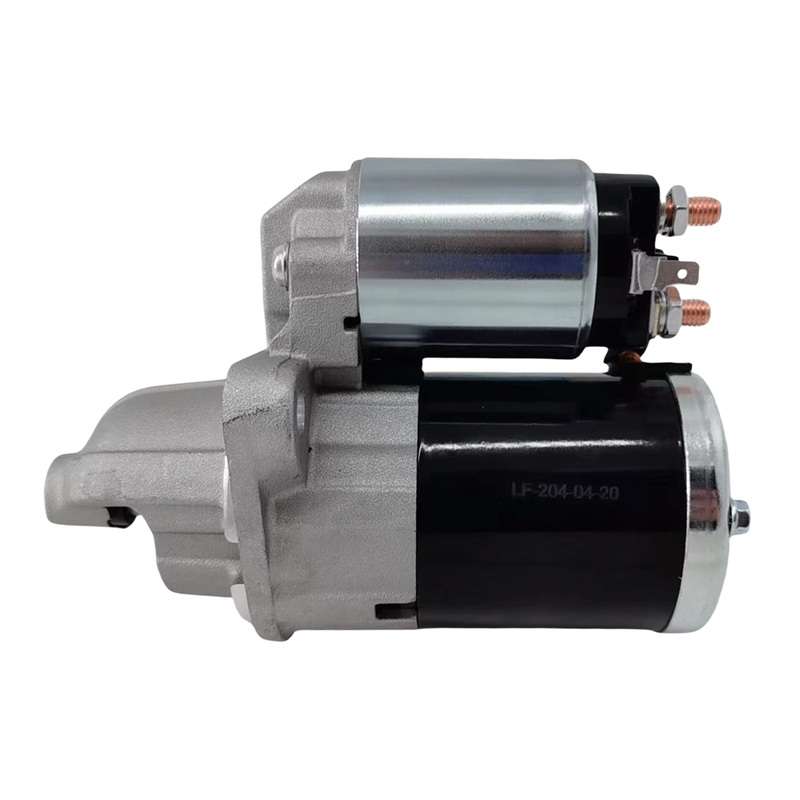

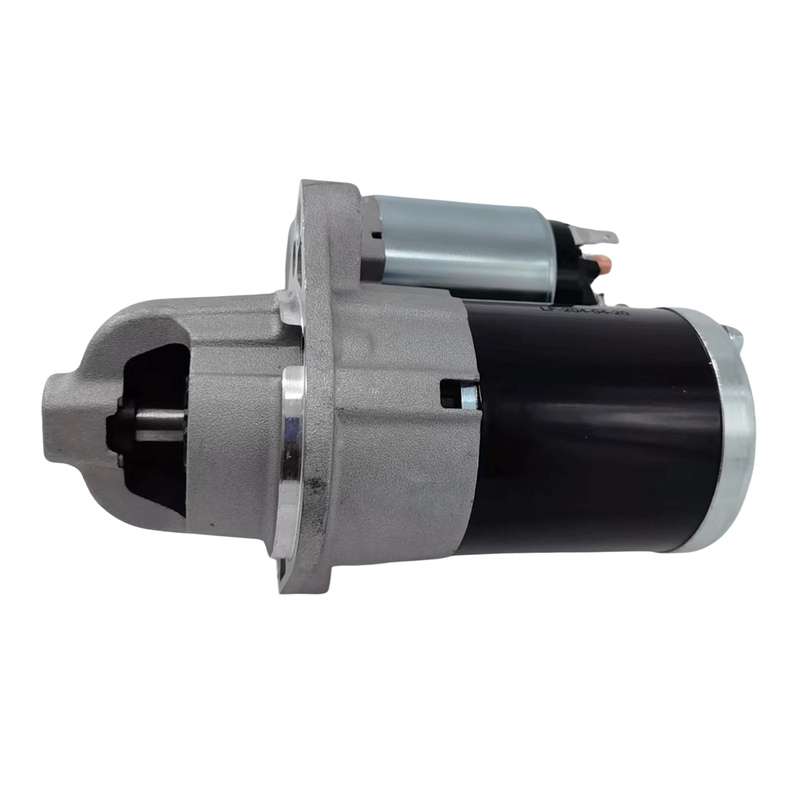

Specification
Volts：12
Kilowatts (kw)：1.4
Overall Length (mm)：195
Mounting Hole (mm)：1x10xM8x1.25
Mount Hole Centres (mm)：102
Flange Diameter (mm)：70
Nose Cone Length (mm)：60
Pinion At Rest (mm)：28
Field Housing Diameter (mm)：70
Teeth：8TH
Rotation：CW
Pinion Diameter (mm)：28
Fitment
Fit For Suzuki Alto GF incl.: GL, GLX 3 cyl K10BN 1.0L 996cc 2009-2014
Fit For Suzuki Baleno EW incl.: GLX Turbo 3 cyl K10C 1.0L 996cc 2016-2019
Fit For Suzuki Kizashi FR engine J24B 2.4L Petrol 2010-2016
Fit For Suzuki Swift FZ ZC82S NZ engine K14B 1.4L Petrol 2013-2017
Fit For Suzuki Grand Vitara JB424 engine J24B 2.4L Petrol 2008-2019
Fit For Suzuki Grand Vitara JB JE JD JT engine J24B 2.4L Petrol 2008-2019
Fit For Suzuki SX4 GY EY RW420 engine J20B 2.0L Petrol 2010-2019
Package
1 x Starter Motor
| SKU | SMOTOR-SU003 |
| Brand | Aftermarket AUTOPARTS |
| Shipping Weight | 2.5700kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.120m |
| Shipping Length | 0.285m |
| Shipping Cubic | 0.005130000m3 |
