Specifications
Volts 12V
Kilowatts (kw) 1.4
Overall Length (mm) 205
Mounting Hole (mm) M7x1.25
Mount Hole Centres (mm) 102
Flange Diameter (mm) 75
Nose Cone Length (mm) 43
Pinion At Rest (mm) 6
Field Housing Diameter (mm) 70
Teeth 8TH
Rotation CW
Pinion Diameter (mm) 28
Fitment
Fit For Suzuki Grand Vitara SQ416 (FT) 1.6L 4cyl Petrol - G16B 01/1999 - 12/2005
Fit For Suzuki Grand Vitara SQ420 (FT) 2.0L 4cyl Petrol - J20A 01/1998 - 12/2005
Fit For Suzuki Grand Vitara SQ625 (FT) 2.5L V6 Petrol - H25A 01/1998 - 12/2005
Fit For Suzuki Grand Vitara JB420 (JT) 2.0L 4cyl Petrol - J20A 01/2005 - 12/2008
Fit For Suzuki Grand Vitara JB627 (JT) 2.7L V6 Petrol - H27A 01/2005 - 12/2008
Fit For Suzuki Vitara SE416 (ET) 1.6L 4cyl Petrol - G16B 01/1994 - 12/1998
Fit For Suzuki Vitara SV620 (ET) 2.0L V6 Petrol - H20A 01/1995 - 12/1998
Package

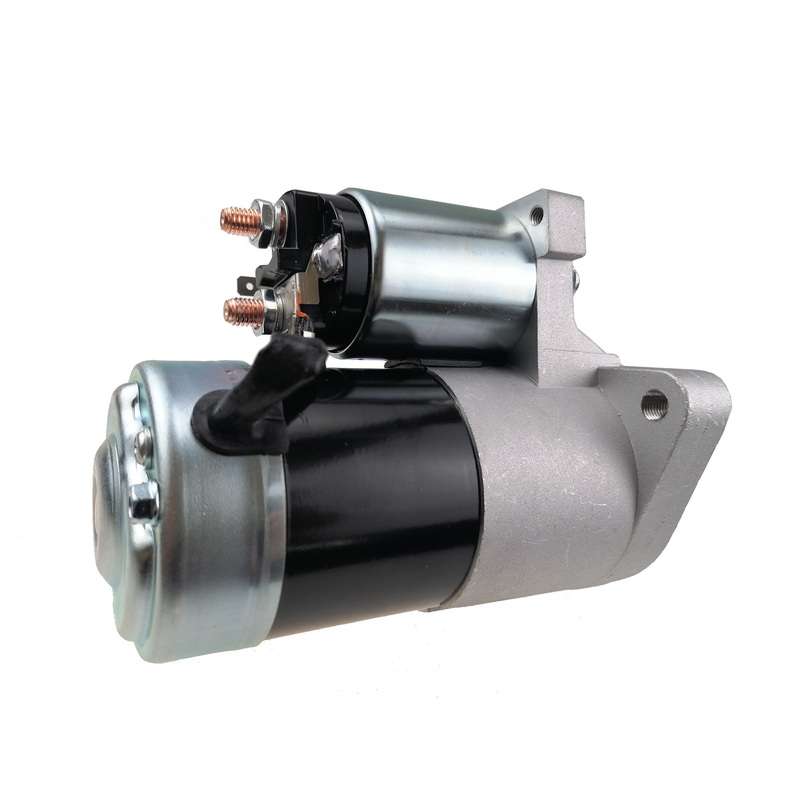

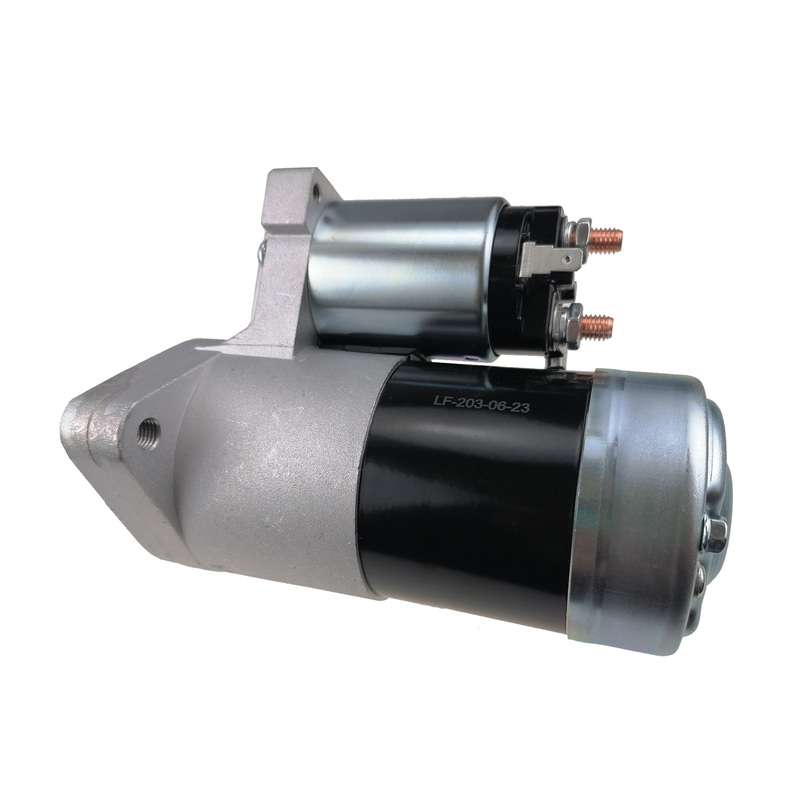

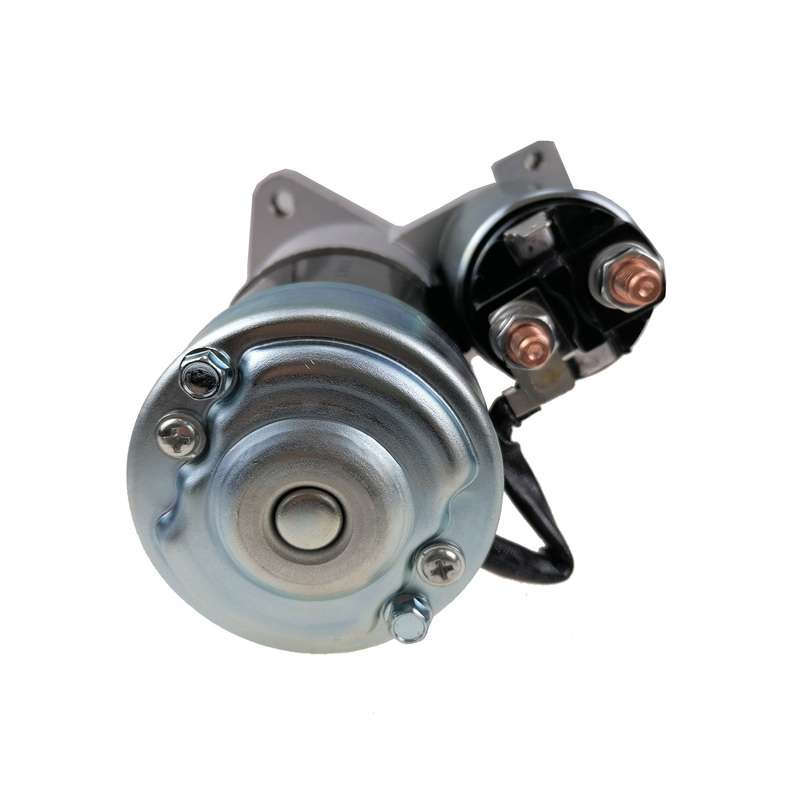

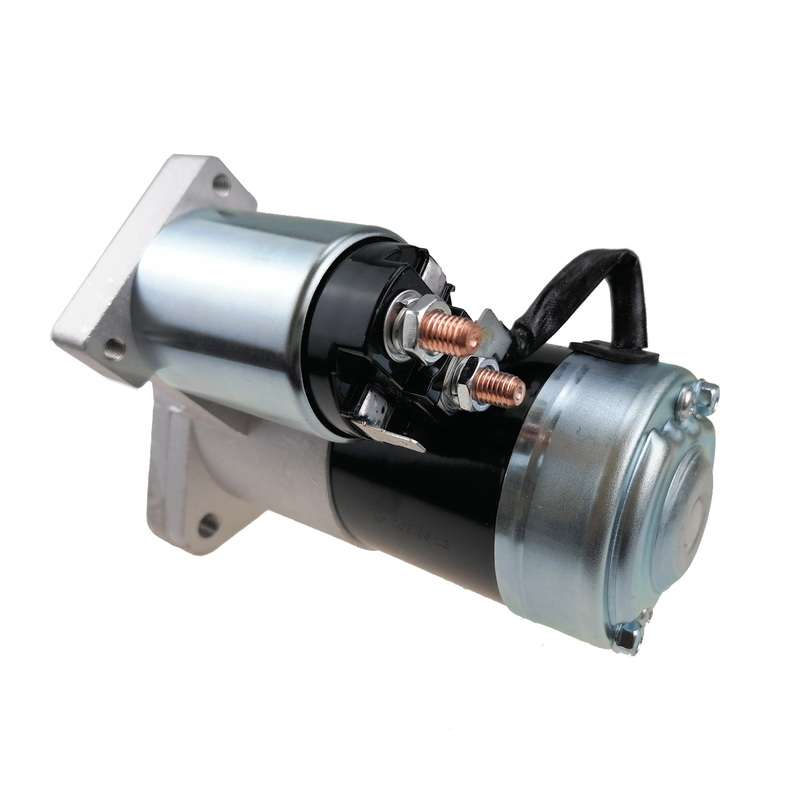

1 x Starter Motor
| SKU | SMOTOR-SU002 |
| Brand | Aftermarket AUTOPARTS |
| Shipping Weight | 3.4500kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.120m |
| Shipping Length | 0.285m |
| Shipping Cubic | 0.005472000m3 |
