Features
Direct Replacement To Your Original Unit
Plug-and-play, Easy Installation.
Lamination Materials
Copper Windings, Resistant To 200 Degrees Celsius.

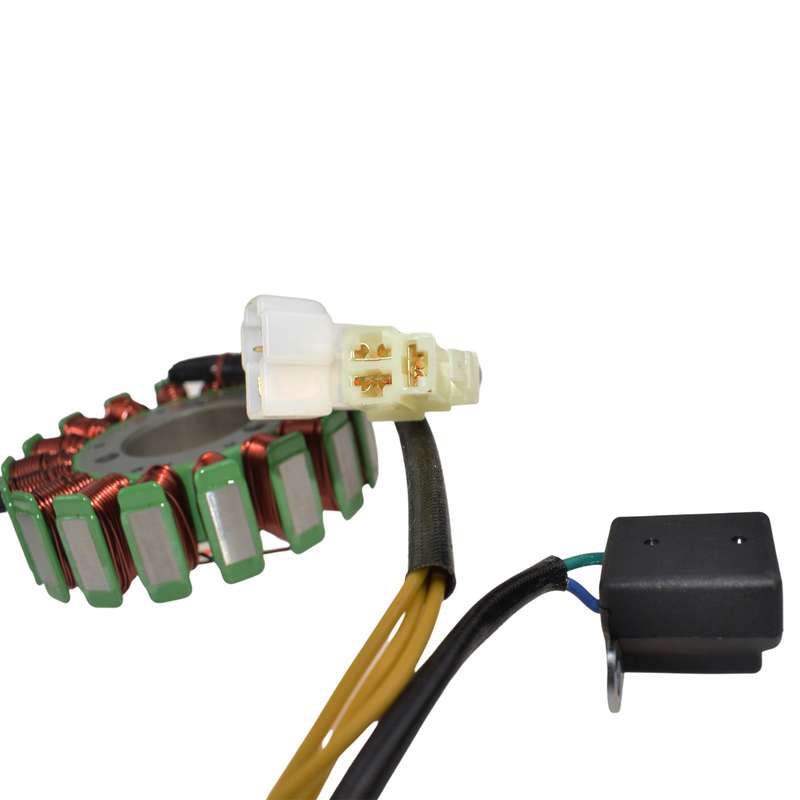

Pick Up Pulsar Coil Included
Connector Included
All Products Shipped Are Tested

Specifications
Condition: Aftermarket 100% Brand New

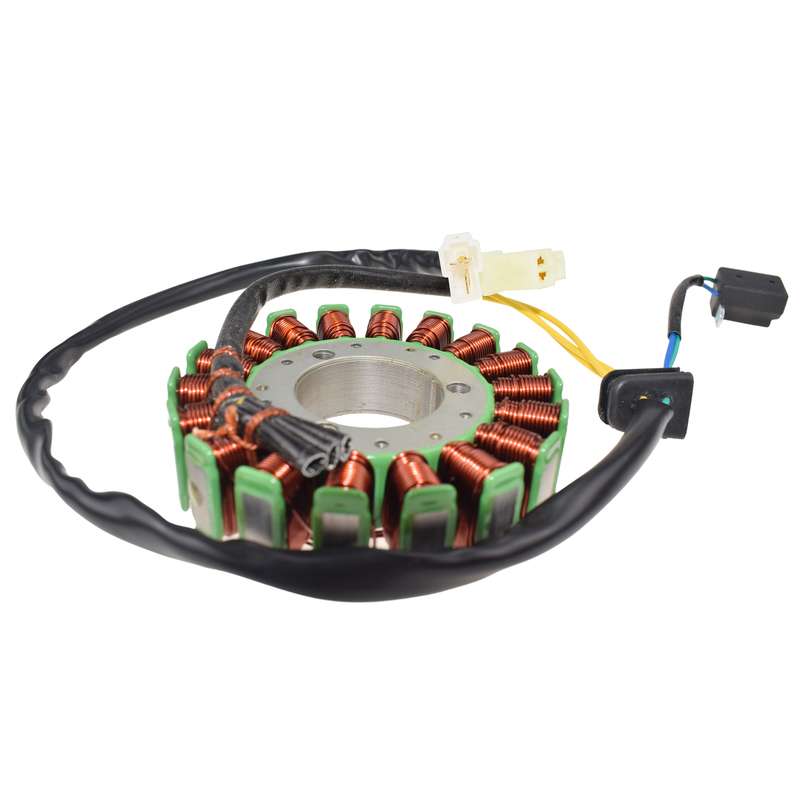

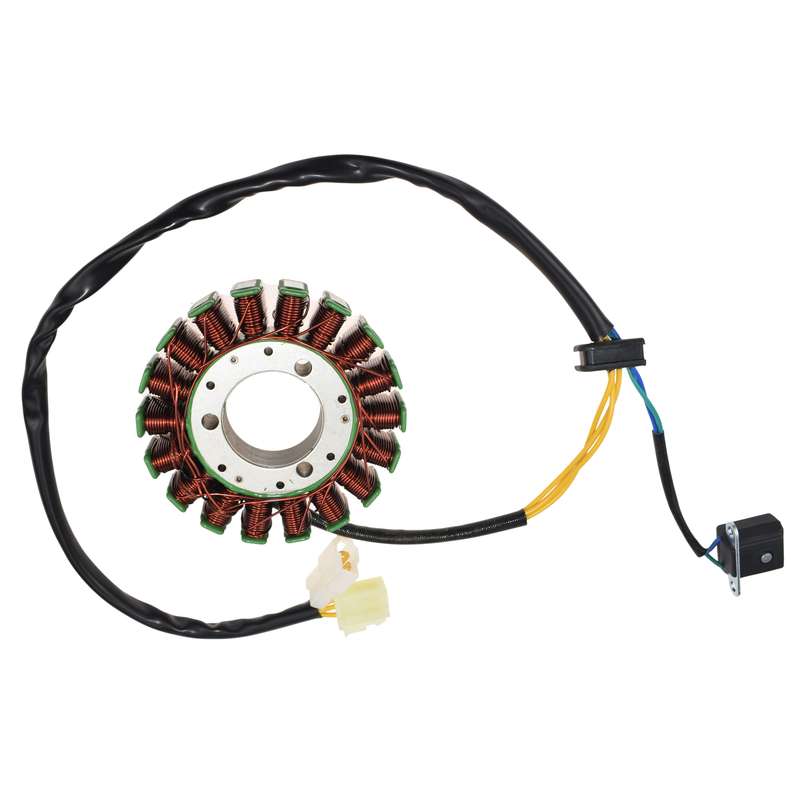

Type: Generator Stator Coil
Oem Replacement Part Number: 32101Hn9101

Dimensions
Interior Diameter : 38 Mm / 1.49"
Exterior Diameter : 104 Mm / 4.09"
Thickness : 11 Mm / 0.43"

Other Specifications :
Number Of Wires : 5
Number Of Pins : 5
Number Of Plugs : 2
Number Of Fixation Holes: 3

Fitment
Fit For Hyosung Gt650R Gt650 2005-2017
Fit For Hyosung St7 Carb 2010-2016
Fit For Hyosung Gv650 Carb 2005-2009, 2012-2017
Fit For Hyosung Gt650 X Special Edition 2008
Fit For United Motor V2S-650 2006-2008
Fit For United Motor V2C-650R 2006-2008
Fit For Atk Gt650R Carb 2011-2012
Fit For Atk Gv650 Carb 2010-2012

Package
1x Generator Stator Coil

Notice
Before Installing Your New Stator

Check The Ac Output Of The Stator.
Replace Any Burned Or Corroded Connectors On Stator And Regulator/Rectifier
Check And Repair Any Melted Wiring.
Use Hi-Temp Dielectric Grease On All Connectors
Our Stator May Use a Different Wire Color Code Than Your Original.
All Of The Wires Are Installed In The Correct Order; Please Do Not Change Any Of The Wiring Configurations.
This Stator Is Designed As a Direct Plug-In Replacement And Should Be Used As Such.
When Bolting Stator In, Always Use Locking Compound.
If Our Stator Includes a Pickup Coil, Always Make Sure The Air Gap Is Correct Upon Installation.
